    BXM(D)8061 Series Illumination Distribution Box Explosion Proof Stainless Steel

    Ask Lasest Price
    Brand Name : Warom
    Model Number : BXM(D)8061
    Certification : IECEx; ATEX;
    Payment Terms : T/T
    • Product Details
    • Company Profile

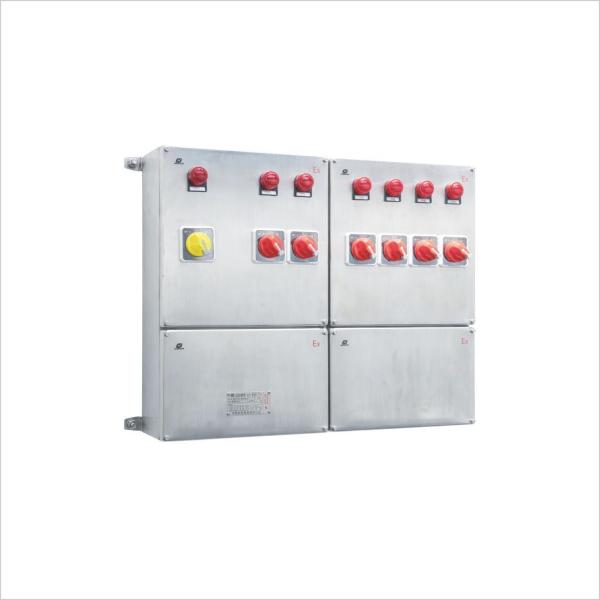

    BXM(D)8061 Series Illumination Distribution Box Explosion Proof Stainless Steel

    Product Introduction




    Specification
    Global (IECEx)IECEx CQM 22.0002X
    Gas and dust

    Ex db eb mb IIC T5 Gb (Ta: -20℃~+40℃)
    Ex db eb mb IIC T4 Gb (Ta: -20℃~+55℃)
    Ex tb IIIC T80℃ Db (Ta: -20℃~+55℃)
    When the product is equipped with an explosion-proof heater, the marking is:
    Ex db eb mb IIC T4 Gb (Ta: -20℃~+45℃)
    Ex tb IIIC T80℃ Db (Ta: -20℃~+45℃)

    Europe (ATEX)TUV CY 22 ATEX 0206669X
    Gas and dust

    II 2 G Ex db eb mb IIC T5 Gb (Ta: -20℃~+40℃)
    II 2 G Ex db eb mb IIC T4 Gb (Ta: -20℃~+55℃)

    II 2 D Ex tb IIIC T80℃ Db (Ta: -20℃~+55℃)

    When the product is equipped with an explosion-proof heater, the marking is:

    II 2 G Ex db eb mb IIC T4 Gb (Ta: -20℃~+45℃)

    II 2 D Ex tb IIIC T80℃ Db (Ta: -20℃~+45℃)

    CertificatesIECEx; ATEX
    Conformity to standardsEN; IEC
    Degree of protectionIP66
    Ambient temperature-20℃~+55℃(+45℃/+40℃)


    Data
    MaterialStainless Steel
    DimensionsAs per design
    Rated voltageMax. 690V AC 50/60Hz, Max. DC 500V
    Rated currentMax.250A
    Cable entriesStandard M□ x 1.5 plug
    Cable gland (optional)DQM-I(Ex e)
    Surface MountingStandard


    Download


    BXM(D)8061 Series Explosion-proof Illumination (Power) Distribution Boxes (Ex d e IIC)

    (Download here:icon_pdf.gifBXM(D)8061 Series Explosion-proof llumination (Power) Distribution Boxes (Ex db eb llC).pdf.)


    Global (IECEx):IECEx CQM 22.0002X
    (Download here:icon_pdf.gif(IECEx CQM 22.0002X Issue No.3.pdf )
