HRFY-E Series Weatherproof Light Fittings for LED Lamps(Type C)

  • Product Details
  • Company Profile

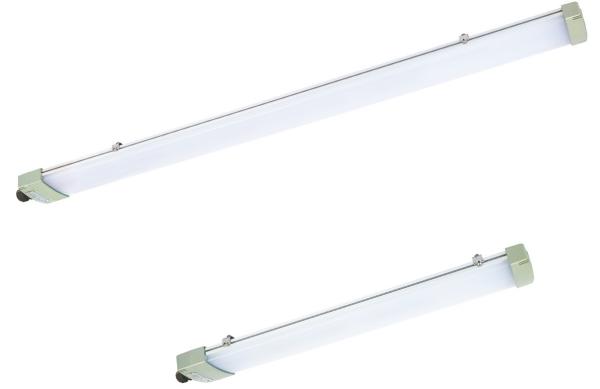

HRFY-E Series Weatherproof Light Fittings for LED Lamps(Type C)

Product Introduction




Specification
Model SpecificationsLamp powerColor temperatureCRILuminaire luminous fluxEnclosure typeWeight
HRFY-E18□C18W5000KRa≥80≥2520lm2.6kg
HRFY-E36□C36W5000KRa≥80≥5100lm
4.2kg
HRFY-E50□C50W5000KRa≥80≥7500lm4.2kg


Data
Rated voltage220V~240V AC 50/60Hz
Ambient temperature-40℃~+55℃ ( -60℃~+60℃ is optional)
Degree of protectionIP66
Cable gland2 × M25 × 1.5 entry specification, suitable for cable of φ9mm~φ16mm
Terminal≤2.5mm2 reliable wire connection(≤4mm2 is optional )
MountingCeiling type(x),pendant pole type 1(g1),pendant pole type 2(g2),pendant chain type(L),flange type2 (f2),fence type(h),bend pole type(w),wall type(b)


Download


HRFY-E Series Weatherproof Light Fittings for LED Lamps(Type C)

(Download here:icon_pdf.gifHRFY-E Series Weatherproof Linear Light Fittings with LED (Type C).pdf)
