BZC8050 Series GRP Control Stations Explosion Proof For Harsh Environments

    Buy cheap BZC8050 Series GRP Control Stations Explosion Proof For Harsh Environments from wholesalers

    Buy cheap BZC8050 Series GRP Control Stations Explosion Proof For Harsh Environments from wholesalers
    • Buy cheap BZC8050 Series GRP Control Stations Explosion Proof For Harsh Environments from wholesalers

    BZC8050 Series GRP Control Stations Explosion Proof For Harsh Environments

    Ask Lasest Price
    Brand Name : Warom
    Model Number : BZC8050
    Certification : IECEx; ATEX; CU-TR
    Payment Terms : T/T
    • Product Details
    • Company Profile

    BZC8050 Series GRP Control Stations Explosion Proof For Harsh Environments

    Product Introduction

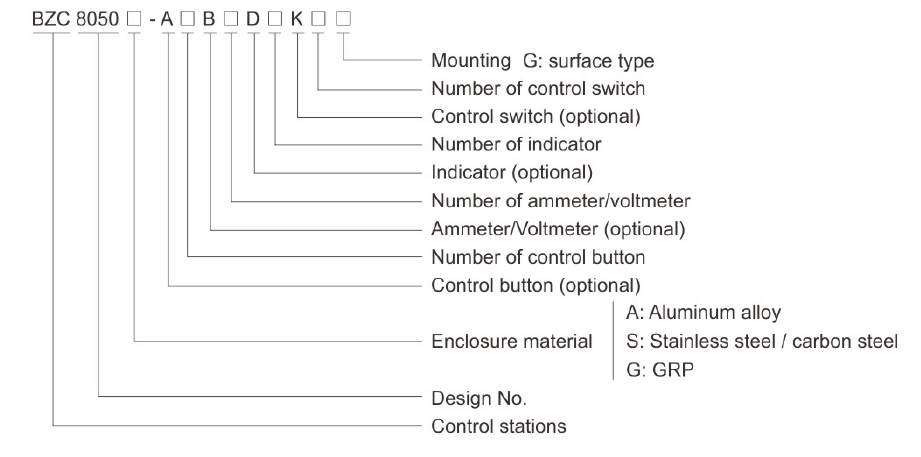

    20190619142712892.jpg@!w400


    Specification
    Global (IECEx)IECEx CQM 24.0057X
    Gas and dust

    Ex db eb mb IIC T6/T5 Gb
    Ex db eb IIC T6/T5 Gb
    Ex tb IIIC T80℃ Db

    Europe (ATEX)

    TUV CY 25 ATEX 0207269X

    Gas and dust

    spacer.gifII 2 G Ex db eb mb IIC T6/T5 Gb
    II 2 G Ex db eb IIC T6/T5 Gb

    spacer.gif II 2 D Ex tb IIIC T80℃ Db
    CertificatesIECEx; ATEX; CU-TR
    Conformity to standardsEN; IEC
    Degree of protectionIP66
    Ambient temperature-60℃(-40℃)~+55℃(+40℃)


    Data
    MaterialGRP (glass fibre-reinforced polyester resin)
    DimensionsAs per design
    Weight0.65~7.3kg
    Enclosure colourBlack
    Exposed fastenerStainless steel
    Rated voltage

    Max. 500V/440V AC
    Max.220V DC

    Rated current16A,10A
    ComponentsRefer to catalogue
    Cable entriesM□ x 1.5 plug, please see the Selection table on P4/25
    Cable gland (optional)DQM-I (Ex e) is recommended
    MountingSurface type


    Download

    BZC8050 Series Control Stations (GRP)

    (Download here:icon_pdf.gifBZC8050 Series Control Stations (GRP).pdf)

    Global (IECEx): IECEx CQM 24.0057X

    (Download here:icon_pdf.gifIECEx CQM 24.0057X.pdf)
